Y6 is a non-fullerene acceptor-donor-acceptor (A-D-A) type small molecular acceptor (SMA) with flexible alkyl chains and a centrally fused ring. It has a ladder-type electron-deficient core, which can be blended with PM6 for organic photovoltaic applications.



Brand: BCM



Orbital Energy: HOMO -5.65 eV; LUMO -4.10 eV



pKa: -1.31±0.30(Predicted)



Solubility: Soluble in Chloroform



GHS: GHS07

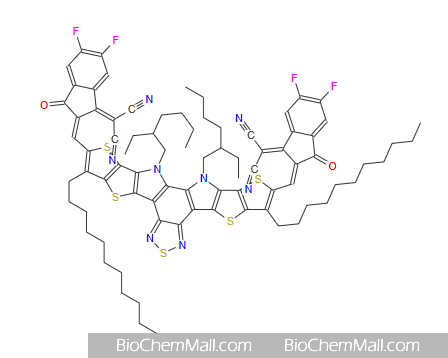

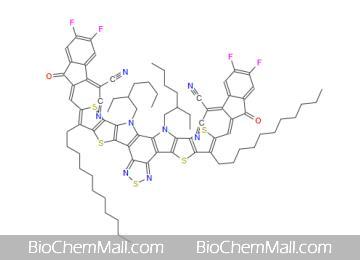

Isomeric SMILES: CCCCCCCCCCCC1=C(SC2=C1SC3=C2N(C4=C3C5=NSN=C5C6=C4N(C7=C6SC8=C7SC(=C8CCCCCCCCCCC)C=C9C(=C(C#N)C#N)C1=CC(=C(C=C1C9=O)F)F)CC(CC)CCCC)CC(CC)CCCC)C=C1C(=C(C#N)C#N)C2=CC(=C(C=C2C1=O)F)F



InChIKey: XJRVXAOYOOOQLU-UHFFFAOYSA-N



InChI: InChI=1S/C82H86F4N8O2S5/c1-7-13-17-19-21-23-25-27-29-33-51-63(39-57-65(49(41-87)42-88)53-35-59(83)61(85)37-55(53)75(57)95)97-81-73-79(99-77(51)81)67-69-70(92-101-91-69)68-72(71(67)93(73)45-47(11-5)31-15-9-3)94(46-48(12-6)32-16-10-4)74-80(68)100-78-52(34-30-28-26-24-22-20-18-14-8-2)64(98-82(74)78)40-58-66(50(43-89)44-90)54-36-60(84)62(86)38-56(54)76(58)96/h35-40,47-48H,7-34,45-46H2,1-6H3



Attribute
[Chem Name]	2-[2-[[23-[[1-(dicyanomethylidene)-5,6-difluoro-3-oxoinden-2-ylidene]methyl]-3,27-bis(2-ethylhexyl)-8,22-di(undecyl)-6,10,15,20,24-pentathia-3,14,16,27-tetrazaoctacyclo[16.9.0.02,12.04,11.05,9.013,17.019,26.021,25]heptacosa-1(18),2(12),4(11),5(9),7,13,16,19(26),21(25),22-decaen-7-yl]methylidene]-5,6-difluoro-3-oxoinden-1-ylidene]propanedinitrile
[Synonym]	Y6; Y6-EH-4F; BTP-4F
[CAS No.]	2304444-49-1
[MDL No.]	MFCD33029273
[Formula]	C82H86F4N8O2S5
[Molecular]	1451.94
[Form]	Solid
[Storage]	Keep in dark place. Inert atmosphere. 2-8°C
